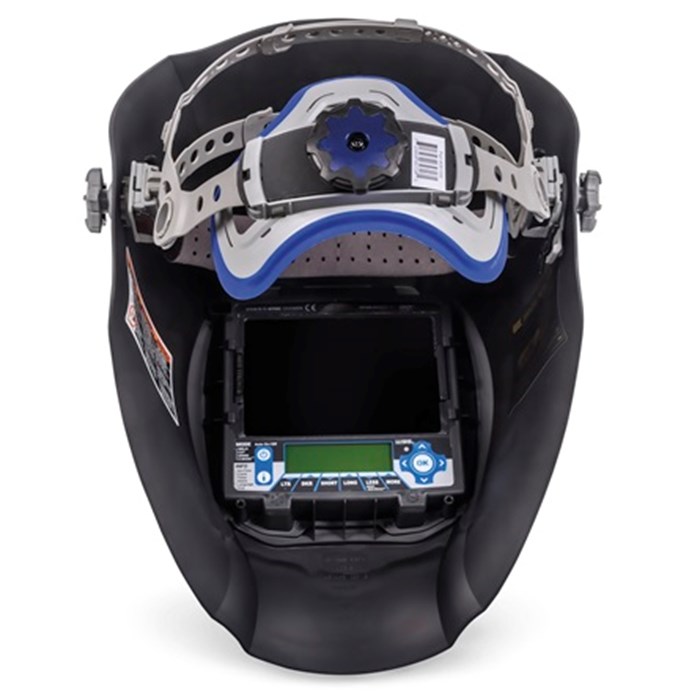

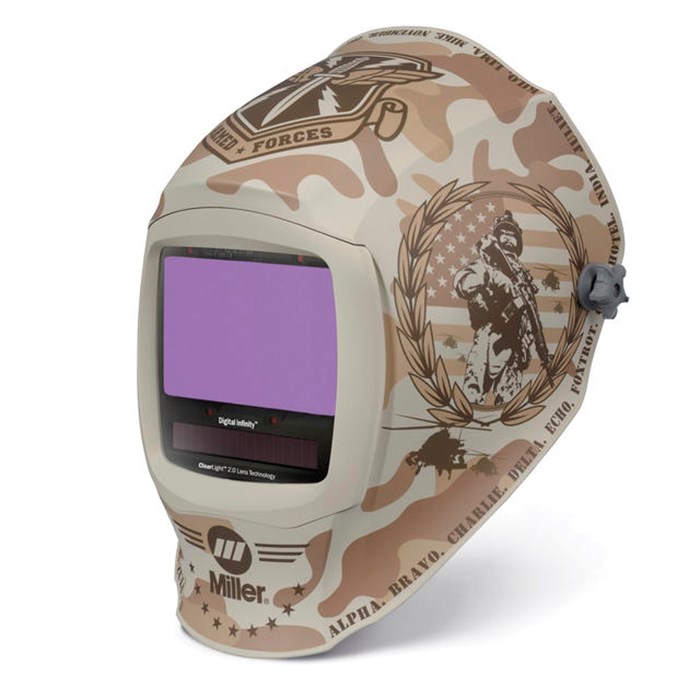

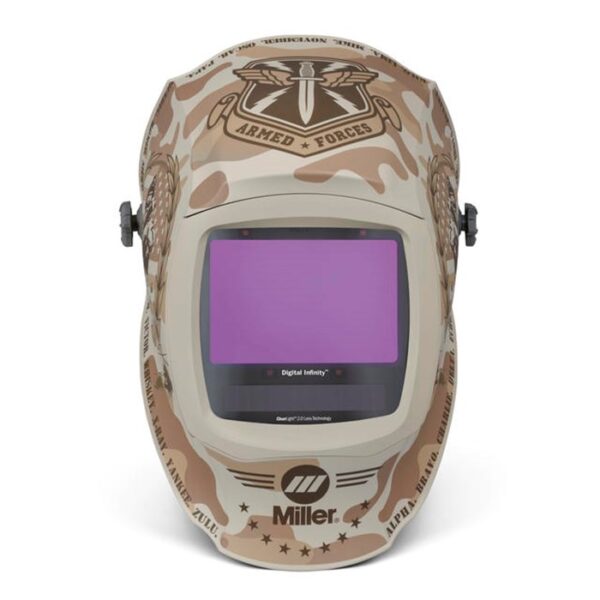

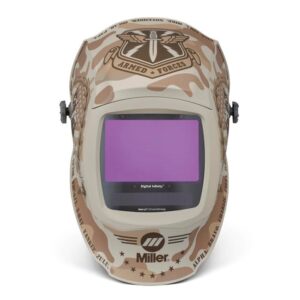

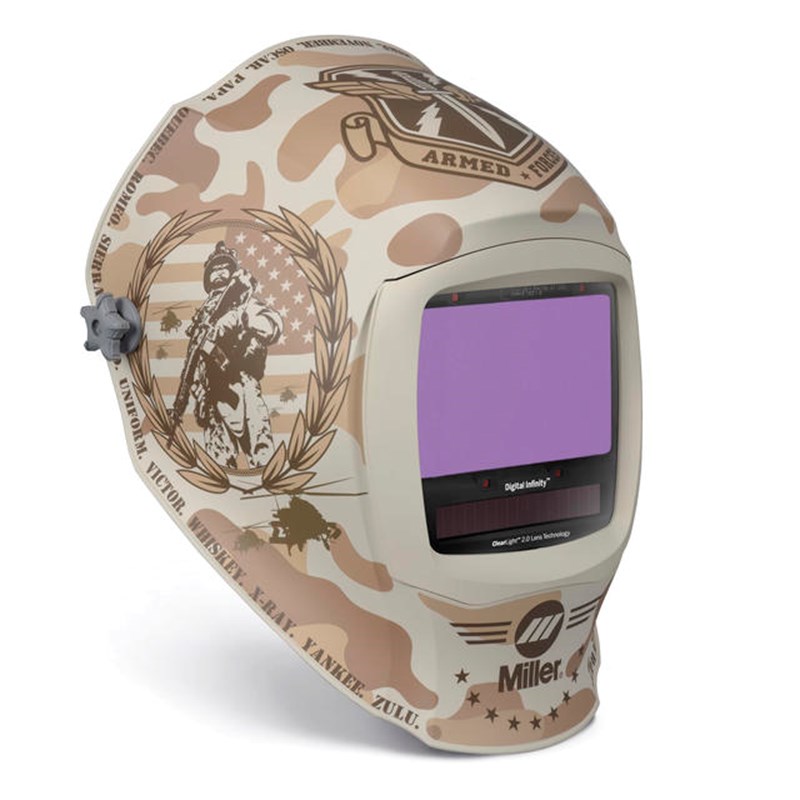

Miller Honor Digital Infinity ClearLight 4x Auto-Darkening Welding Helmet 296785

Genuine Miller® Honor™ Digital Infinity™ welding helmet, with ClearLight™ 4x lens technology, features 13.4 square inches of viewing area and offers visual quality that is up to four times better than the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. The stunningly clear views, in both light and dark states, are superior in quality and color to virtually every other auto-darkening lens in the world. High-definition optics and a bright shade 2.5 grind/light state allow you to view your work before, during and after welding – like never before.

The Digital Infinity™ ClearLight™ 4x lens has four arc sensors and operates in weld, cut, grind and Miller’s X-Mode™, which eliminates sunlight interference and low-amp lens flashing from obstructed arc sensors. It is rated for low amperage TIG welding down to 5 amps. Switching speed is a lightning fast 1/25,000 of a second. The Miller Digital Infinity ClearLight 4x auto darkening welding hood features shade 8-13 weld mode, shade 8-13 X-Mode™, shade 5-8 cut mode and shade 2.5 grind mode. It comes complete with Miller’s Legacy headgear, InfoTrack™ 2.0, AutoSense™, easy-to-use digital controls and a four year True Blue® lens warranty.

Miller Electric® will donate $10 to the Semper Fi & America’s® Fund with the sale of every Honor™ welding hood. The fund’s mission is “to provide immediate financial and lifetime support to our nation’s critically wounded, ill and injured service members, veterans and military families.”

Miller Digital Infinity™ ClearLight 4x Welding Helmet Features

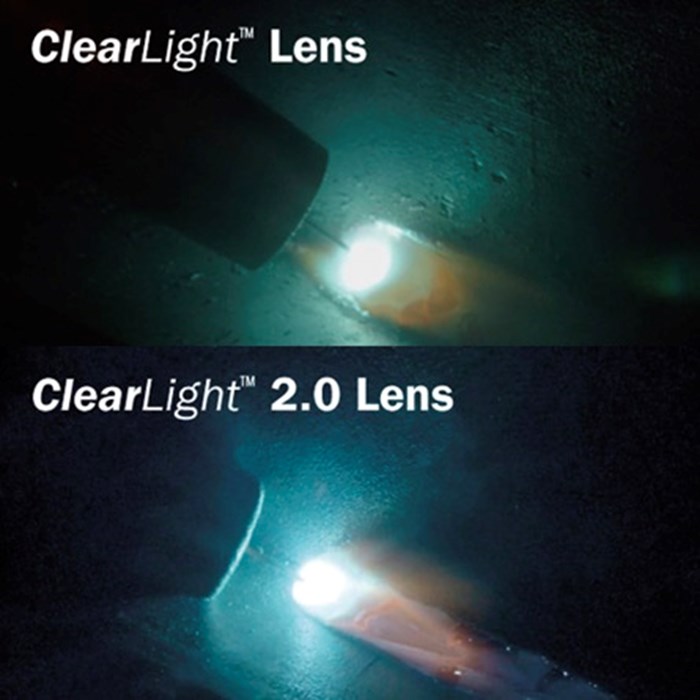

• ClearLight™ 4x lens technology

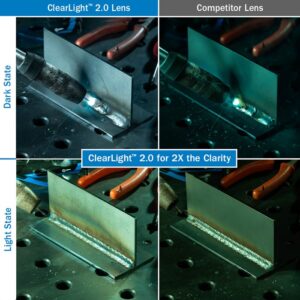

  Provides up to four times the visual quality of the minimum USA ANSI standard for 1/1/1/1 rated auto-darkening welding lenses. Advanced, high-definition optics and a shade 2.5 light state combine for a view that’s clearer and brighter – before, during and after every weld.

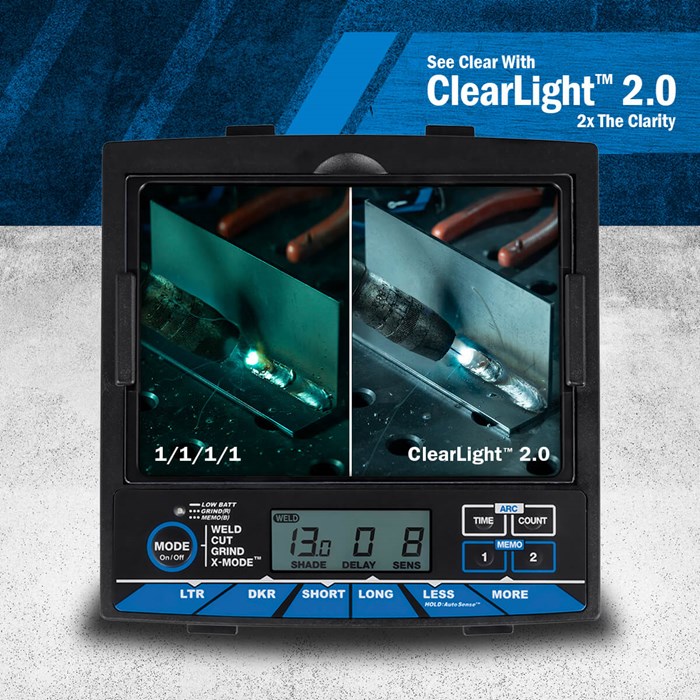

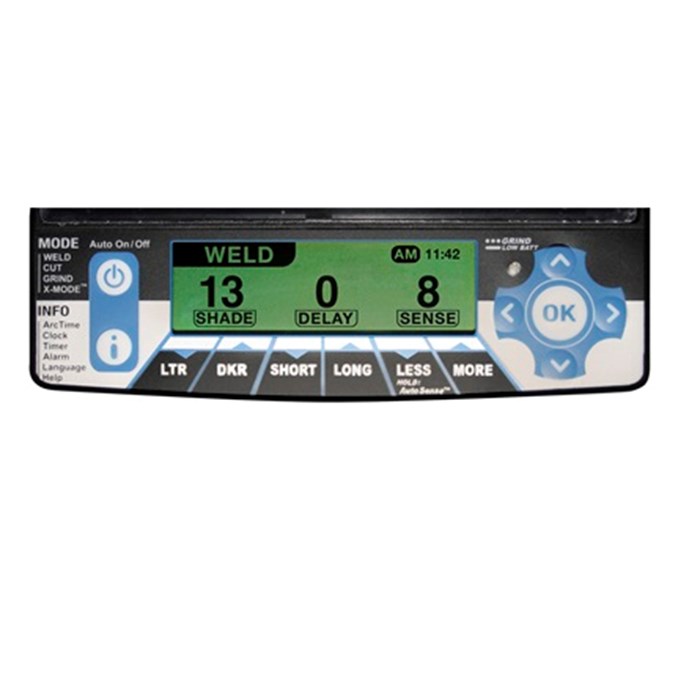

• Digital Controls With Four Arc Sensors and Four Operating Modes –
• Weld Mode™ Shades #8 – 13
• Cut Mode™ Shades #5 – 8
• Grind Mode – Light State Shade #2.5
• X-Mode™ Shades #8 – 13

• X-Mode™
  Electromagnetic Arc Sensing for: Sunlight interference outdoors, Low-Amperage TIG, Pipe/Curves, Obstructed Sensors & Hidden/Cavity Welds
• Memory Function
  For ease of switching between two preset memory settings.
• Half-shade settings
  For precise lens adjustment.
• InfoTrak™ 2.0
  Exclusive arc tracking technology that monitors arc time and arc count for quoting and worker safety metrics.
• AutoSense™
  Eliminates issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense™ button to automatically set the helmet sensitivity for their environment.
• Auto-on/off
  Power control triggers lens at the strike of an arc.

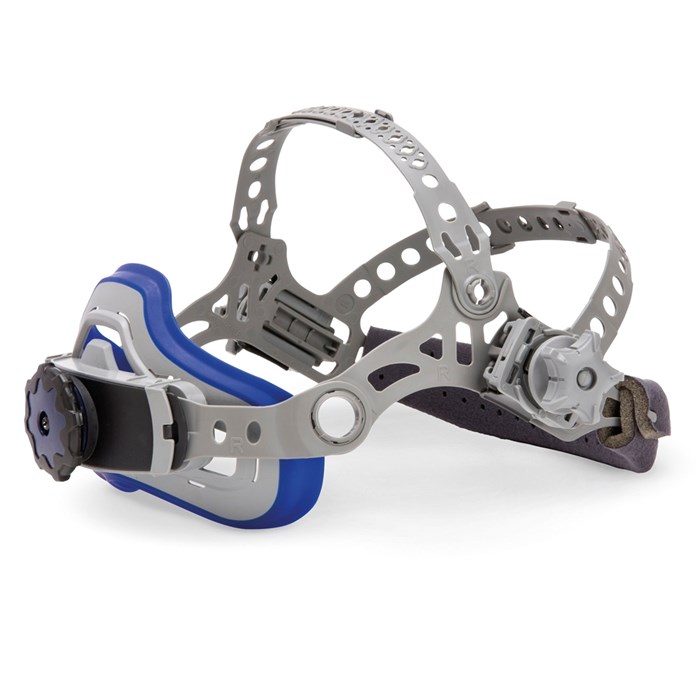

• Legacy Headgear
  Features ergonomic design that provides extensive adjustment settings, and enhanced support.
  Digital Infinity™ Specs




Comes complete with

• 5 outside cover lenses
• 2 inside cover lenses
• Helmet bag
• Four year warranty
