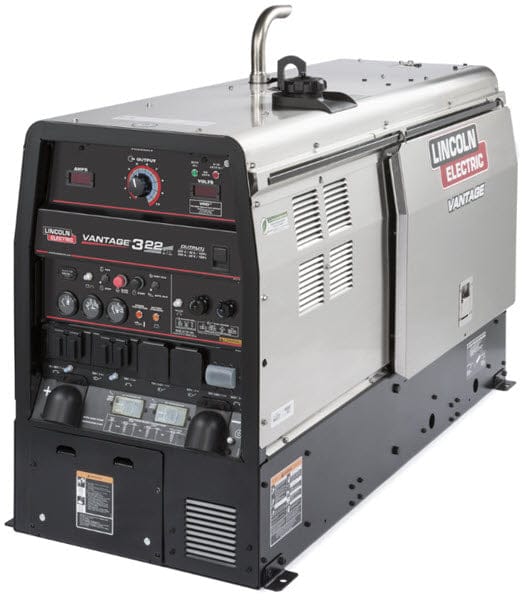

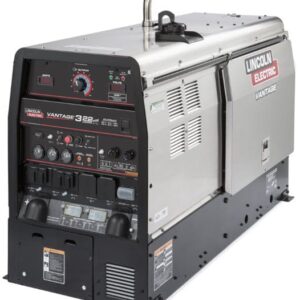

Lincoln Vantage 322 CC/CV K2409-5

The Lincoln® Vantage® 322 is a 400 amp, multi-process diesel engine welder that is excellent for mechanical construction and pipe welding. The Vantage 322’s compact and lightweight design makes it ideal for most pickup trucks. The standard stainless steel side panels and roof extend the life and durability of the Vantage welder. Five different welding modes allow you to quickly switch between stick, touch start DC TIG, MIG, flux-cored and carbon arc gouging (with up to 1/4″ diameter carbons).

The Vantage 322 produces up to 11,500 peak watts of single-phase AC auxiliary power AND up to 12,500 peak watts of three-phase AC auxiliary power. The Kubota® V1505 four-cylinder diesel engine is EPA Tier 4F compliant and produces 22 horsepower at 1,800 RPM.  It’s unique VRD™ (Voltage Reduction Device) reduces open circuit voltage to minimize electric shock risk.

Lincoln® Electric Vantage® 322 Processes

• Stick (SMAW)
• MIG (GMAW)
• Flux-cored (FCAW)
• DC TIG (GTAW)
• Air carbon arc (CAC-A) Rated: 1/4-inch (6.5 mm) carbons

Applications
Mechanical construction
Pipe welding
Maintenance jobs

Features:

• Compact Versatility
  Offers up to 400 amps (IEC rated at 300 amps) of welding current to tackle numerous welding and carbon arc gouging applications.
  Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 1/4 in. carbon rods.
• VRD™ (Voltage Reduction Device™)
  Reduces OCV (open circuit voltage) in CC-stick welding mode for added safety.
• Generator Output
  Provides up to 11 kW of continuous three-phase power or 10 kW continuous single-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
• Patented Chopper® Technology
  Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
• Reliable Operations
  Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
• Industrial Diesel Engine
  Powered by a 22 hp, naturally aspirated Kubota® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.
• Innovative Service Access
  Lockable and removable sliding access door to service the engine and internal components, battery drawer on front of machine for quick access, and top-mounted radiator cover provide convenient access to the machine.
• Run Longer Between Fill Ups
  Features a large 20 US gal. (75.7 L) fuel tank compared to smaller 11 US gal. (41.6 L) tanks in competitive machines

• Designed to operate over 10,000 hours before the first basic overhaul.
  Backed by worldwide support and service.
• Quiet at only 72.1 dba (97 Lwa)
  At 23 ft at maximum output.Lincoln Vantage 322 Specs
