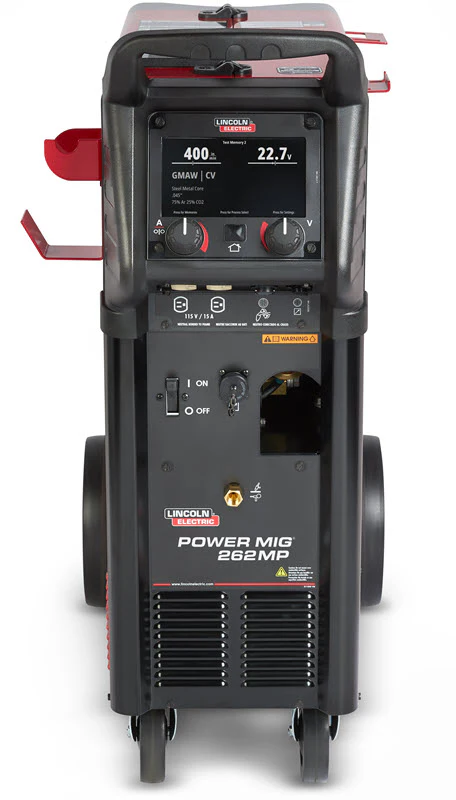

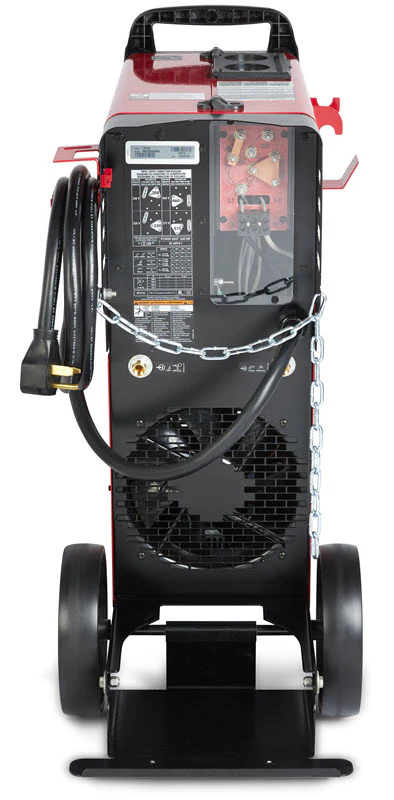

Lincoln® POWER MIG® 262MP Aluminum (Push) One-Pak® K5637-1

The Lincoln® POWER MIG® 262MP Aluminum (Push) One-Pak® is a 230 amp multi-process welding package that comes complete with two MIG guns – one configured for aluminum, and one configured for steel/stainless steel welding wire. The Power MIG 262MP is capable of MIG, pulsed-MIG, DC TIG, pulsed-DC TIG and Stick welding. It operates on 208-575 volt, single-phase input power. Advanced welding features include ArcFX™ technology. ArcFX™graphically displays how changes in voltage and wire feed speed affect your weld. Sample weld cross sections are displayed in the bright, 7 inch LED screen depicting how your bead profile will look, based on your actual welding parameters. Using this feature allows you to quickly reference the type of welding outcomes you want and fine tune your adjustments accordingly. Ready.Set.Weld™ feature removes the guesswork in setting the right welding parameters for your job. Large color display guides you through your specific welding application to ensure a great weld every time.

Built-in pulsed MIG and pulsed DC TIG circuitry allows for superior control of the welding arc, while reducing burn-through and warping. Pulsed MIG Mode varies weld current between peak (high heat) and background (low heat) current to provide better control of heat input. Pulsed MIG also enables flat, horizontal, vertical up, or overhead welding without a slag system. Optimized GMAW-P wave forms are readily available to use on aluminum, carbon steel, high strength low alloy steel, stainless steel, and nickel alloys. Use pulse DC TIG welding with OPTIONAL TIG torch to help minimize burn through on thin materials. Lower heat input may lessen warping of parts, especially stainless steel materials. The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz. The pulse setting automatically regulates the output current between the peak amperage set by the amptrol (if used) and the background amperage, which is equal to 60% of the peak. The peak pulse % on-time is fixed at 50%.

The POWER MIG 262MP has built-in spool gun circuitry, for quality aluminum MIG welds using an OPTIONAL Magnum® 250LX spool gun or push-pull gun. The 262MP produces up to 300 amps of welding output. It runs on 208V – 575V single-phase input power and has a three year factory warranty.

Processes

• MIG (GMAW)
• MIG Pulsed (GMAW-P)
• Flux-Cored (FCAW)
• DC TIG (GTAW)
• DC TIG Pulsed (GTAW-P)
• Stick (SMAW)

  Applications
  Metal Fabrication
  Maintenance and Repair
  Auto Body
  Light Industrial



  Features

• 300 Amp Max Output
  Perfect for autobody, general fabrication, education, and more.
• ArcFX™ Technology
  Patented technology providing instant graphical feedback on how Wire Feed Speed and Voltage affect the weld outcome.

• Ready.Set.Weld® Quick Set-Up
  Intuitive push-and-turn digital controls make setup a breeze

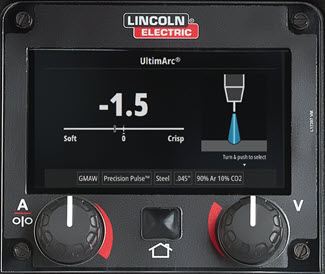

  7 inch color display guides you through the setup process Advanced options and settings are simple to access



• Multi-Process Capable
  Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®.
• Aluminum Pulse Process
  Welds 4XXX and 5XXX series aluminum for superior quality welding.
• TIG Pulse
  Use pulse TIG welding to help minimize burn through on thin materials.
  The TIG Pulse feature has a single knob control which sets the pulse frequency over the range of 0.5-19.5 Hz, or 17.6-303 Hz.
• Synergic Control
  Set weld procedures with one control.
• More Performance For Your Dollar
  Universal Input Voltage

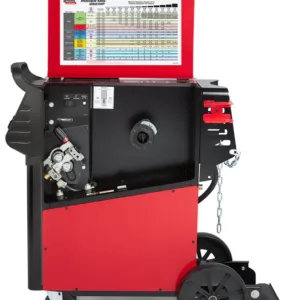

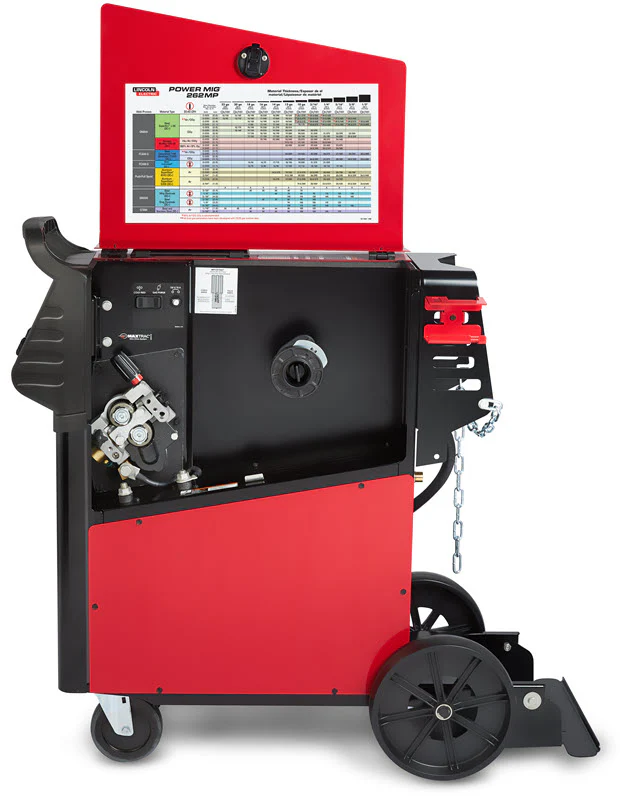

  Maxtrac® wire drive provides constant wire feed speed and more consistent welds

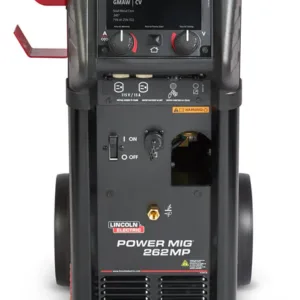

  Front access to 115V power outlet and gun connections
  Push-pull and Spool gun ready for aluminum projects*
  Automatic settings help achieve optimal weld parameters
• Memory Recall
  Easily save and access memories with the newly enhanced UI.

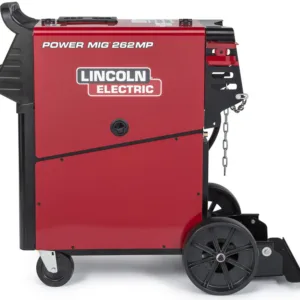

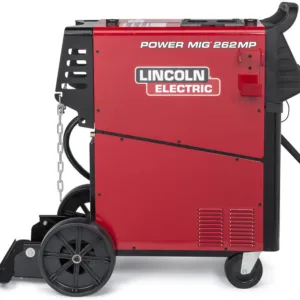

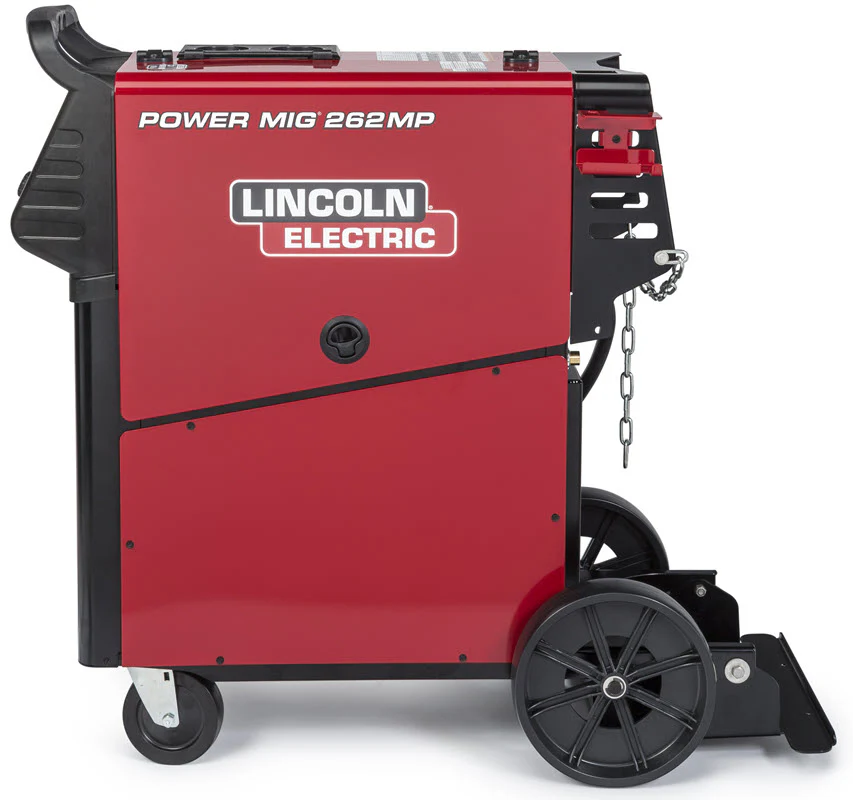

• Ergonomic Design
  Tilting gas bottle tray for ease of loading
  Ideal height for easy-to-view settings
  Easy maneuverability and small footprint

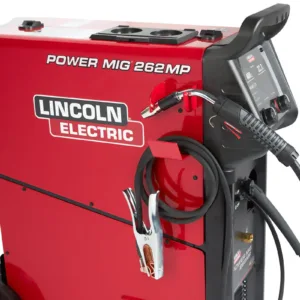

  Convenient top-mounted expendable parts compartment


  PLEASE NOTE: This is a DC TIG welder ONLY. It CANNOT TIG weld aluminum.

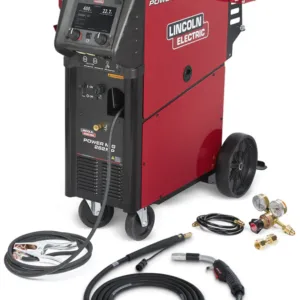

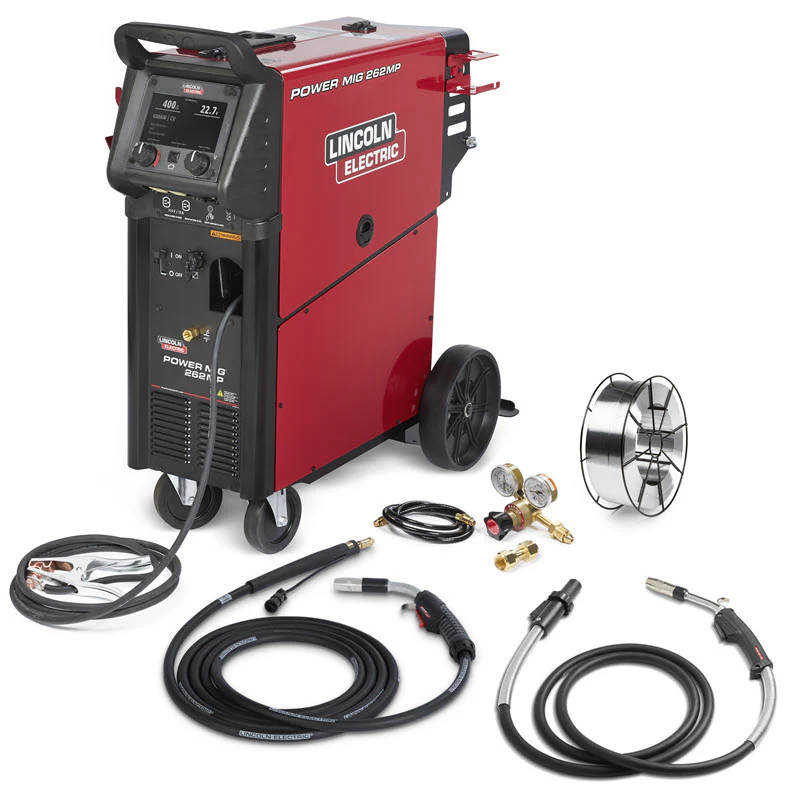

  Comes complete with

• K5376-1 POWER MIG® 262MP Multi-Process Welder
• K4530-2 15FT Magnum® PRO 250L Welding Gun
• K586-1 Adjustable Gas Regulator and Hose
• KP1696-1 Drive Roll Kit 0.035/0.045 in
• 10 ft Work Cable with Clamp
• 10FT Power Cable with Plug
• 10FT K4700-1-6-116A Magnum® PRO Curve™ 300 AL Push Gun
• KP1695-3/64A Aluminum Drive roll kit, 2-roll, 3/64 in. (1.2 mm)
• SuperGlaze® 5356 3/64 in. (1.2 mm) 16 lb (7.3 kg) spool
