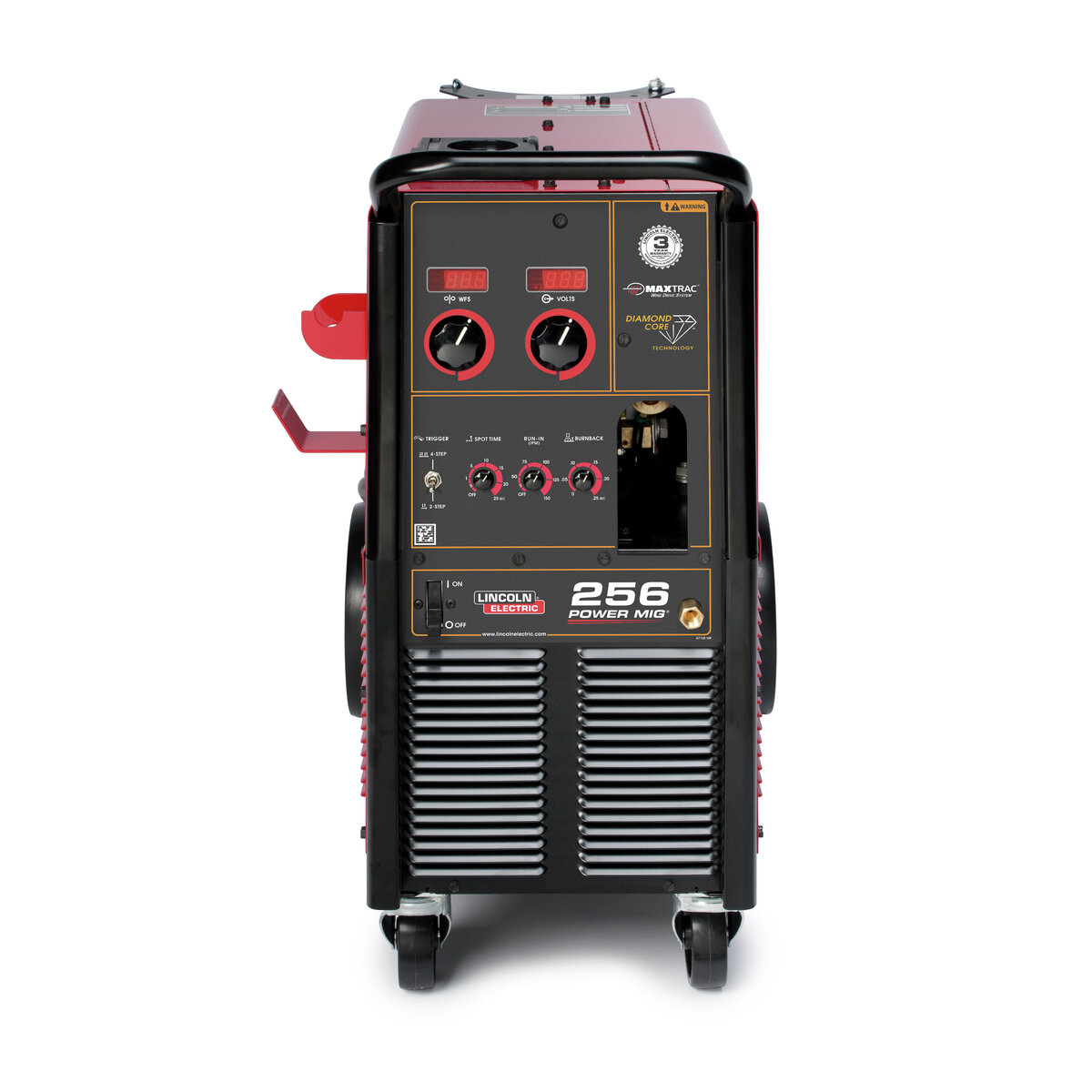

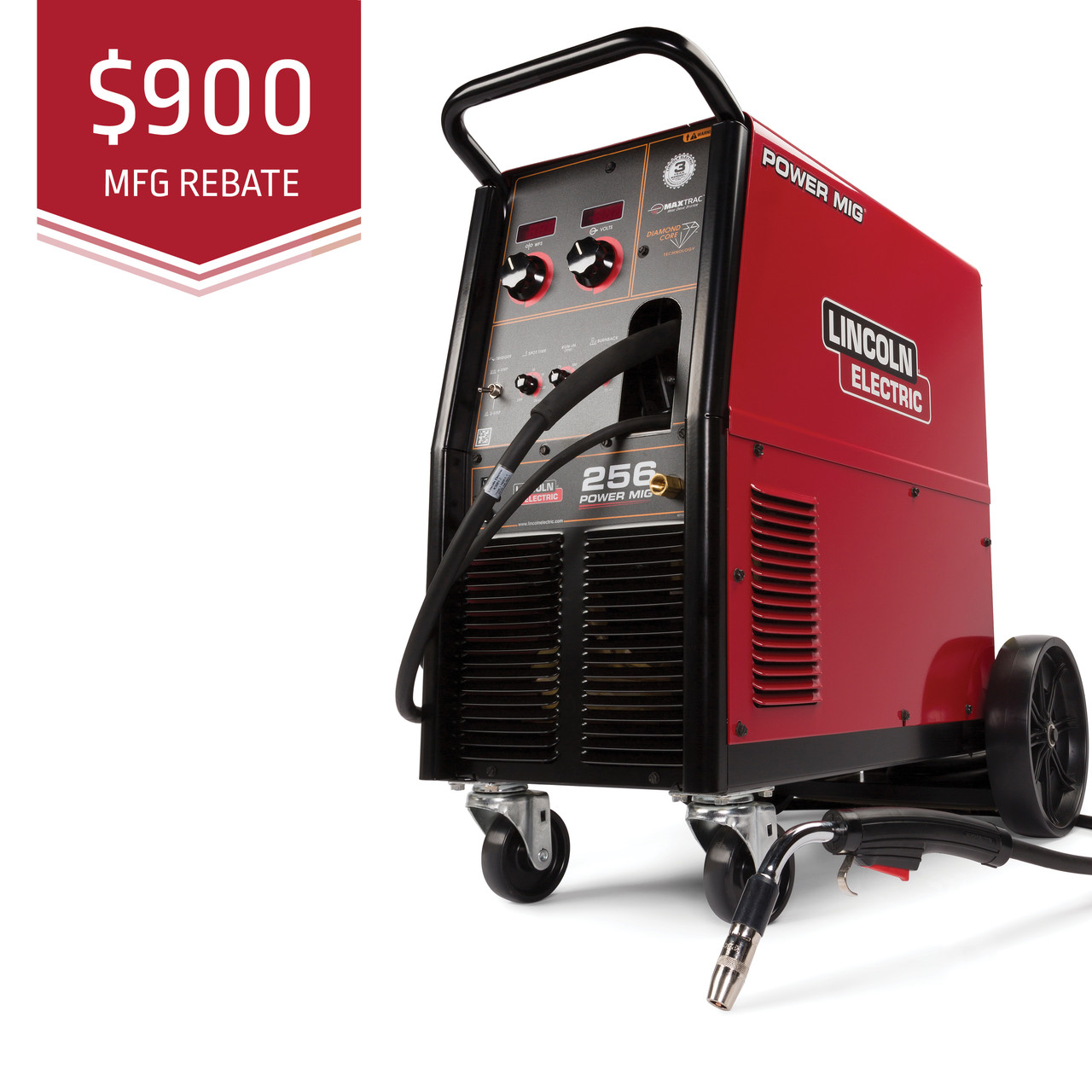

Lincoln POWER MIG® 256 MIG Welder, Multi-Voltage Input #K3068-2

HEAVY-DUTY PROFESSIONAL MIG WELDER

The Lincoln Electric Power MIG 256 welding machine is perfectly designed for light industrial jobs such as fabrication, maintenance, and repair work. It features Diamond Core Technology which provides a forgiving arc, impeccable out-of-position arc stability, low spatter, and a wide voltage sweet spot at a given wire feed speed for steel, stainless steel, or aluminum. This machine comes equipped with MAXTRAC cast aluminum industrial wire drive with dual driven rolls, regulated wire feed speed control, brass-to-brass connections, and the Lincoln Electric 100% wire supporting split wire guide system.

Add in the featured digital meters for additional precision and easy adjustments during both setup and use. The Power MIG 256 comes with the new Magnum PRO gun and cable as well as the Copper Plus contact tips adding efficiency and longevity to tip life. This powerhouse of a machine is spool gun ready and even includes a 115V auxiliary receptacle (208/230V model only) to power all your extra auxiliary equipment when needed. Take on your next challenge with the best, take on your next challenge with the Power MIG 256.

FEATURES OF THE POWER MIG 256

The POWER MIG® 256 sets the standard for MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.

• Diamond Core Technology™ – Delivers a forgiving arc, excellent out-of-position arc stability, low spatter and a wide voltage
  sweet spot at a given wire feed speed for steel, stainless steel or aluminum.
• MAXTRAC® cast aluminum industrial wire drive – Features dual driven rolls, regulated wire feed speed control, brass-to-brass
  connections and Lincoln’s 100% wire supporting split wire guide system.
• Digital meters – For set up, meters display your preset voltage and wire feed speed. During welding, actual voltage is displayed.
• New! Magnum® PRO gun and cable 15 ft. (4.5 m) – Makes it easy to reach your work.
• Copper Plus® contact tips – Larger tip diameter and mass improves heat dissipation to increase tip life.
• Add a spool gun – The POWER MIG® 256 is spool gun ready for the premium Magnum® 250LX gun and spool gun capable with the
  Magnum® SG (requires adapter).
• 115V auxiliary receptacle – (208/230V model only) to power a grinder or other auxiliary equipment in your work area.
• New! Great value-adding features – Coil Claw™ Cable Management system keeps your workstation organized.
• Convenient top-mounted gun expendables tray.
• All metal case front.

NOTE: THE POWER MIG® 256 CANNOT BE POWERED BY AN ENGINE-DRIVEN WELDER.

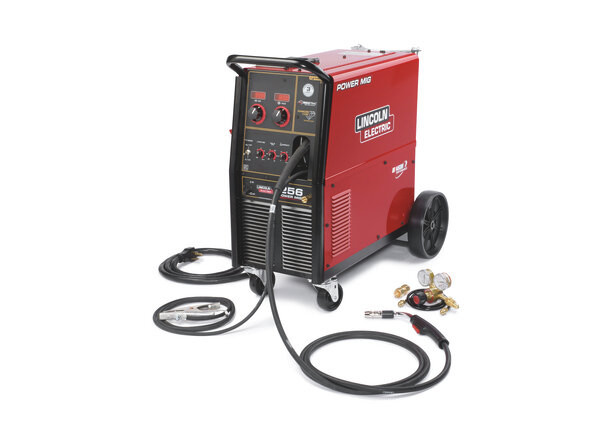

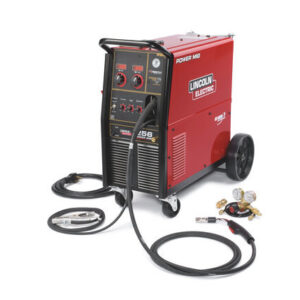

WHAT’S INCLUDED

• Magnum® PRO 250L gun with 15 ft.(4.5 m) cable assembly (K3081-1) Top-mounted gun expendables tray
• Built-in undercarriage with easy-load gas cylinder platform
• Work clamp and 10 ft. (3.0 m) cable
• Drive roll and wire guide to feed both .035 in. & .045 in. (0.9 & 1.2 mm) wire
• Gas regulator and hose kit for argon blend gases. (For use with CO2 shielding gas order a Lincoln Electric S19298 CO2 shielding gas bottle adapter.) (K586-1)
• Large color-coded procedure recommendation sheet.
