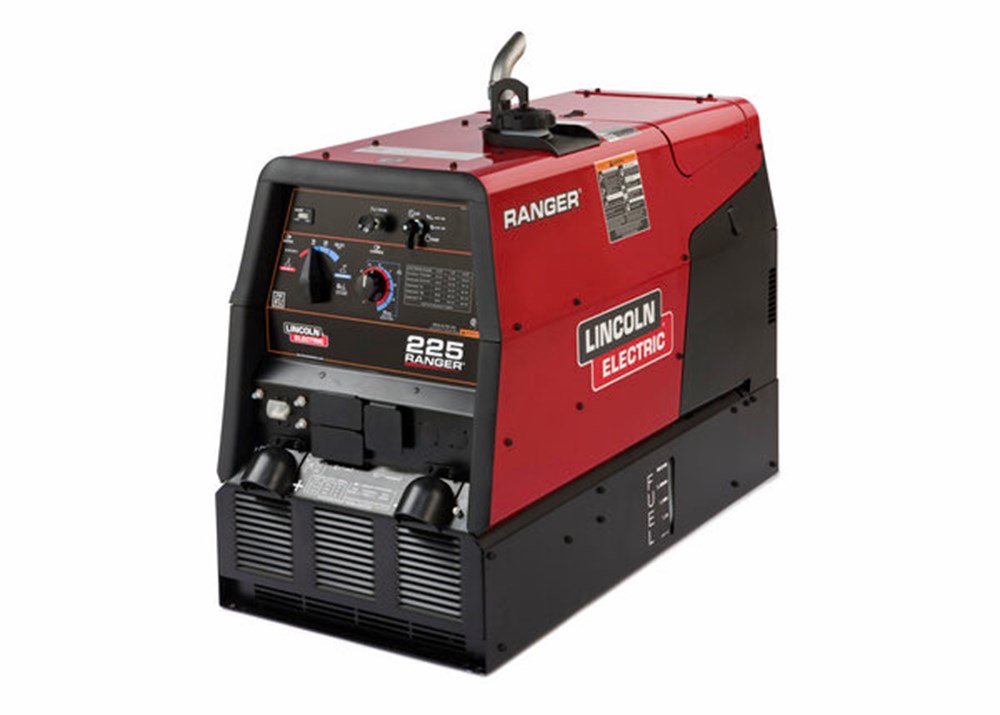

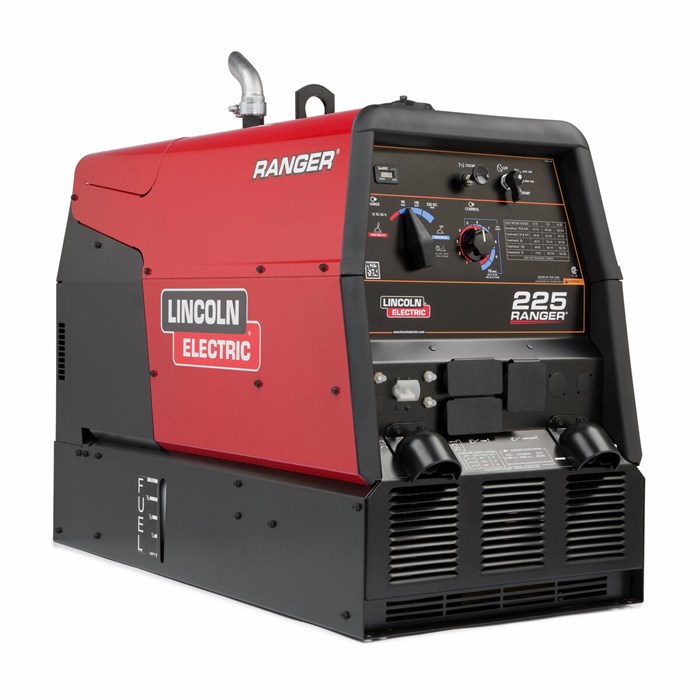

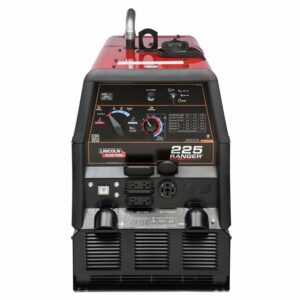

Lincoln Electric Ranger® 225 Engine Driven Welder (Kohler®) #K2857-1

POWERFUL MULTI-PROCESS WELDER

The Lincoln Electric Ranger 225 Engine Driven Welder gives you the advantage of a versatile machine capable of Stick, TIG, MIG, and flux-cored welding processes. Designed with classic Lincoln Electric features you get an easy operating experience with intense power and precision. Don’t worry about a thing with a fully enclosed and protected engine with 3 service access doors for easy upkeep.

This machine gives you 10,500 watts of AC generator power for any extra equipment and features a massive 12-gallon fuel tank for extensive run times. The Ranger 225 gives you rugged reliability and power for all your welding and power generation needs. This versatile machine strives across a swath of industries, from construction to general fabrication and so many more.

FEATURES OF THE RANGER 225

The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes – stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.

TOTALLY ENCLOSED CASE

• Engine is fully protected.
• 3 service access doors.
• Low noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.Versatile DC Welding
• Smooth DC welding output for a broad range of stick electrode types.
• MIG, flux-cored and TIG capable (with optional equipment).
• 10,500 Watts Peak Single-Phase AC Generator Power
• 9,000 watts continuous power for generator output, plasma cutter or inverter welder.
• Power-up lights, grinder, and power tools.23 HP Kohler® Gasoline Engine
• 2 cylinder, 4 cycle overhead valve air-cooled design.
• Oil drain extension for easy oil changes.
• 12 gallon tank for extended run times.
• Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.

RUGGED RELIABILITY

• Welding and AC generator outputs rated at 104ºF (40ºC).
